EndUserSharePoint.com: Email and SharePoint Designer Workflow – Part 1
Author: Paul Galvin, Microsoft MVP – SharePoint
Web site: Paul Galvin’s SharePoint Space
Many business workflow scenarios call for us to send an email at different parts of the process.
Like many things with SharePoint Designer workflow, this is relatively easy to accomplish, but is sometimes harder than it would seem. In this article, I address two tricky scenarios and outline a third which I will address in a future article.
The Scenario
To work through these two simple issues, let’s work with a specific business scenario in mind. We are developing a workflow solution to manage the new hire process. Before a new hire walks through the door on their start date, many different business steps need to take place. For example:
- Assign an office location.
- Set up in payroll.
- Get a security badge.
- Set up network credentials and systems access.
The workflow process is fairly straight forward:
- Create an entry in a custom list where we specify:
- Name
- Start date
- Direct manager
- Comment
- A set of status fields, including:
- Was office location assigned?
- Was payroll set up?
- Was a security badge created and ready for issue?
- Have network credentials been set up?
- When the workflow begins, send an email to several department managers who are responsible for assigning an office location, setting up payroll, etc.
I’m not going to discuss the status fields very much in this article. I include them to plant the idea that we can add these kinds of status columns to a list and then have the workflow update them. This allows us to see the current status of the workflow by simply viewing the list and looking at those columns.”

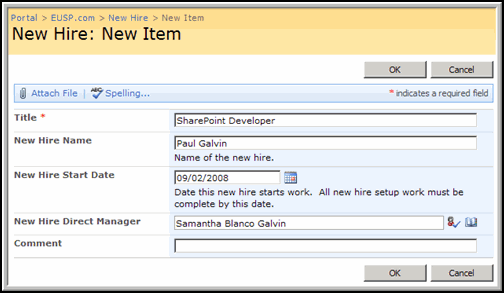

Based on that, we’ll end up with a “New Hire” form like this:
This example is a bit contrived. We would probably just assign a task to those individuals and let the system send them an email. However, let’s assume that the default task assignment email does not meet our email requirements in this case.
When we send these emails, we want them to follow this convention:
Subject:
New hire [new hire name] begins work on [start date].
Body:
Greetings, [new hire], a new hire, begins work on [start date].
Additional comment: [comment]
Note that if [comment] is blank, then we want to show “No special comment.”
This required email forces us to deal with the two issues I want to clear up in this article:
- How do we create a dynamic email subject?
- How do we test for an empty comment and create a dynamic message body?
Dynamic Subject
Dynamic email subjects are very easy, but not obvious at first blush. Many first-time and inexperienced SharePoint Designer workflow builders wrongly conclude that the “send an email” action only allows a fixed subject as shown:
To create dynamic email subject, use a workflow variable and the “build a dynamic string” action. The following screens show these steps:
First, click on “Variables …” and then “Add…” when the “Workflow Local Variables” dialog box opens:
We name our variable and give it a data type. We pick string, but there are several choices:
- Boolean: May be assigned either “Yes” or “No.
- Date / Time: Specifies and date and time.
- List Item ID: Refers to the unique ID of a list item. If you have ever created or modified a document library or custom list view, you probably noticed that all such creatures have an “ID” field.
- Number: Any numeric value.
- String: Any string value (all of the text in this article is a big “string”).
Now that we have defined our workflow variable, we need to assign it a value. We do this with the “Build Dynamic String” action:
In the following screen shot, I have manually typed in this string: New hire [] begins work on[].
I then put the mouse pointer in between the double brackets next to New hire and clicked the “Add Lookup” button:
This allows us to insert the new hire’s name from the list item. Repeat this process for the new hire start date. This is what it looks like when done:
SharePoint Designer uses the notation: [%List Name:Column Name%] to tell us that when this workflow runs, it will insert that column’s value from the list into variable.
With this new variable in hand, we can now create our email with a dynamic subject, as shown:
This is what the send email subject looks like when we have finished:
Managing Blank Fields
The next problem we run into is how to handle blank fields.
First, let’s illustrate the problem. We use the same technique (build dynamic string action) to create a message body as shown:
We’ll leverage the dynamic string function above but this time, we’ll use it to create the body of the email as shown:
Let’s create a new hire, make sure the comment field is blank, launch the workflow and see the what we get:
SharePoint shows five question marks when we expect it to show a blank value. Clearly, “blank” isn’t really blank when it comes to SharePoint Designer emails. We see those ?’s because the field really isn’t blank, it’s “null.” Null is a computer science term that simply means that the value of that field is undefined. Adding to the confusion, SharePoint normally shows a blank value when a particular field is blank, as we see here:
We don’t see any question mark indicator there. Why do we see it in our history or email body?
This happens because the actual value deep in the bowels of the SharePoint database, is Null, not blank. SharePoint seems to break a computing rule called “orthogonality.” This means that when you do “something” in one context, you can reasonably expect that when you do the same thing in a different context, it will behave the same way. SharePoint is breaking orthogonality rules here because when we show the list item in a view, we don’t see “?????”, we actually see a blank. Yet, when we try to use a the same blank field in an email (or history log as shown above), SharePoint shows the question marks.
Fortunately, it’s easy enough to solve this problem.
Create a new step as shown:
Select “Comment” as the field to compare and “is empty” as shown:
Then:
- Add an action, “Set field in current item"
- Pick “Comment” from the drop-down list.
- Assign the value, “No special instructions.”
This time, when we send the email, it won’t have a null value and render as “?????.” Instead, it will have the value “No special instructions.”
Manage Other Kinds of Blank Values
The blank comment field is straight-forward for us to correct. However, if we try to do the same with a date field, we quickly run into a problem. SharePoint Designer does not offer a condition that checks for “is empty” on a date field, as shown:
To get around this, we take these steps:
1. Create a new workflow variable named “StartDateAsString.”
2. Create a step named “Fix blank date (step 1 of 2)” and assign “StartDateAsString” = the current item’s “New Hire Date.” Note that we can assign a string value equal to column of type “Date and Time” but no vice-versa.
3. Create a step named “Fix blank date (step 2 of 2)” and use the “is empty” trick on the workflow variable “StartDateAsString.”
In the second step, add both the check for “is empty” and an “Else If” block as shown:
In the above screen shot, I’m just logging a message indicating whether the field is blank or not. In practice, you would assign an actual value to the “StartDateAsString” such as “Unspecifiied.”
Conclusion
This article shows that SharePoint Designer enables us to send emails with dynamic subjects and dynamic bodies via the “build dynamic string” action. We need to keep in mind that blank values (including text columns, dates, numbers, etc) are not really “blank” as far as SharePoint is concerned, but rather null. We account for this using some conditional logic in our workflow and being a little clever when it comes to dates and numbers since we cannot directly whether such fields are “empty.”
This is not the final word on email. Oftentimes, we send an email because we need someone to take some action (often by completing a task of fill in an InfoPath form). In the next article in this series, I’ll point out some of the difficulties SharePoint Designer throws our way and offer up some approaches to deal with them.
